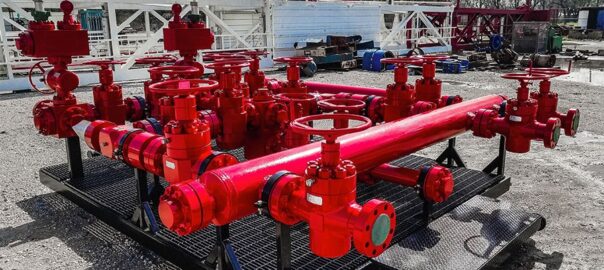

*Overview of Choke Manifold*
Necessary equipment for well kill and pressure-control process
Customizable according to customer requirements
Prevents oil layer pollution, improves drilling speed, and effectively controls blowouts
One end connects with the side flange of BOP spool to control finite pressure from casing by adjusting the choke valve’s opening
*Assembly & Structure*
Consists of choke valve, gate valve, pipeline, fittings, and pressure gauge.
*Working Principle*
Utilizes the choke valve opening/closing to release fluid in the well and control casing pressure as pressure rises
Directly vents high casing pressure through gate valve when necessary
*Specifications*
Pressure levels: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI, 20000PSI. Customizable design according to client requirement.
Compliant with API Spec 16C
Working Pressure: 2,000PSI ~ 20,000PSI
Nominal Bore Size: 2 1/16” ~ 4 1/16”
